W213 Digital Instrument Cluster Upgrade for Mercedes-Benz E-Class
The W213 Digital Instrument Cluster Upgrade is designed for Mercedes-Benz E-Class W213 vehicles
with different original multimedia, display and instrument cluster configurations.
Three upgrade solutions are available according to the original vehicle system.
All main hardware supplied for these upgrades consists of pre-owned original vehicle components
removed from compatible donor vehicles.
These components are not brand-new.
Key Features
- Designed for Mercedes-Benz E-Class W213
- Three different upgrade solutions available
- Suitable for compatible original small-screen and large-screen vehicles
- Widescreen digital instrument cluster upgrade available
- HU5.5 upgrade solution available for compatible small-screen vehicles
- HU6 touchscreen full-system upgrade available
- Main hardware consists of pre-owned original vehicle components
- Original vehicle configuration must be confirmed before ordering
- Professional installation, programming and coding are required
Available Upgrade Options
Three upgrade configurations are available depending on the original multimedia system:

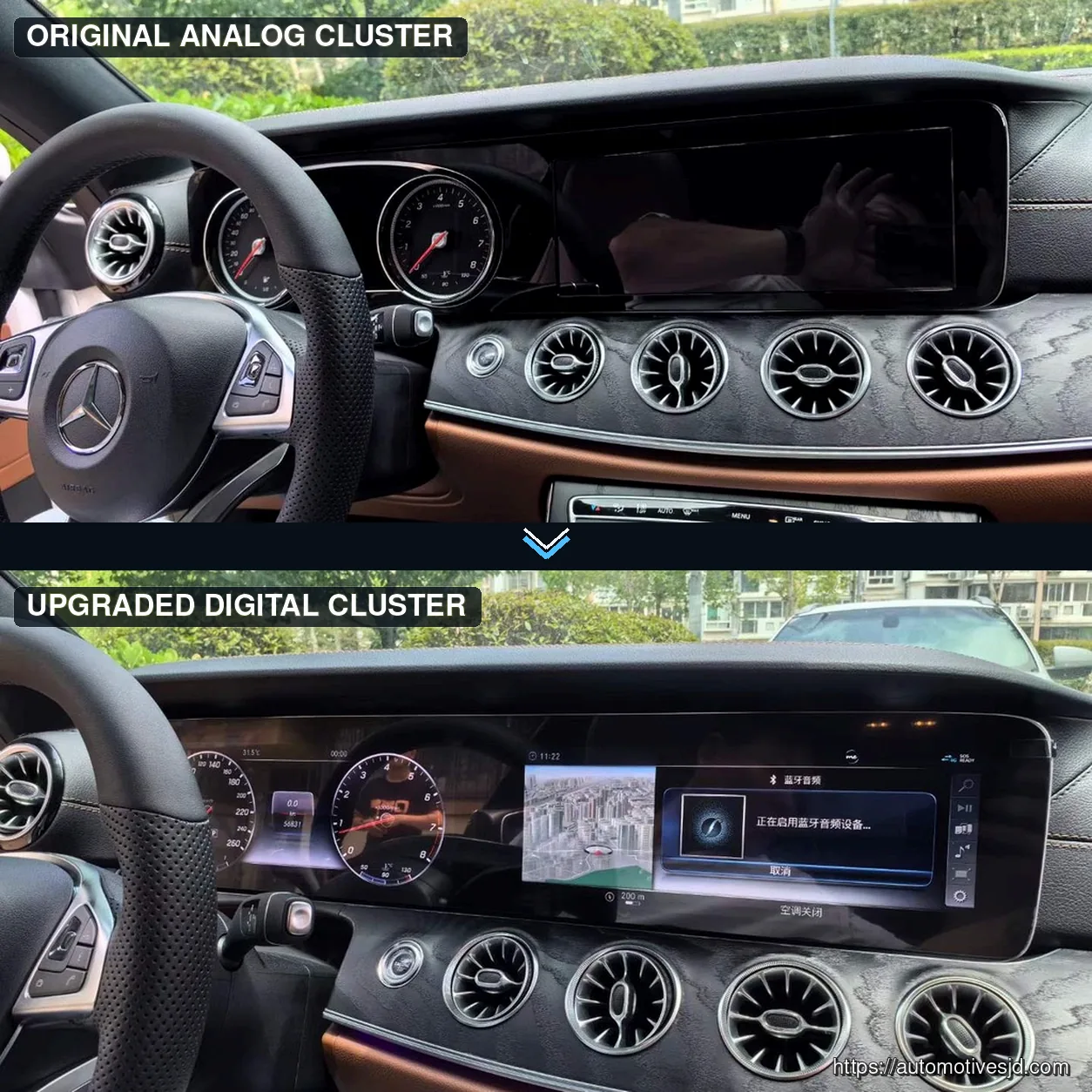

- Small Screen to Widescreen Digital Cluster – HU5.5 Upgrade
- Large Screen to Widescreen Digital Cluster – Display Upgrade
- HU6 Touchscreen Full System Upgrade

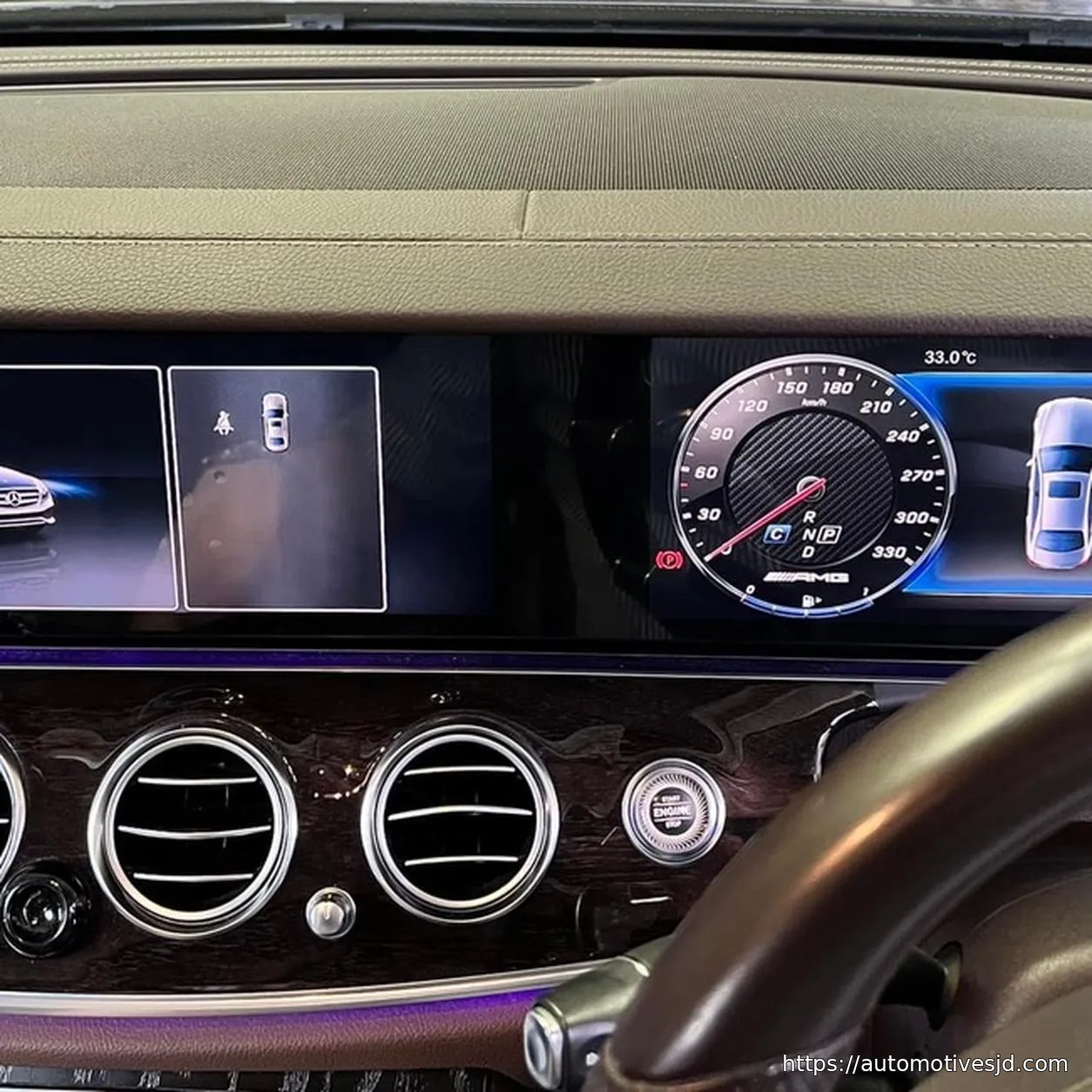

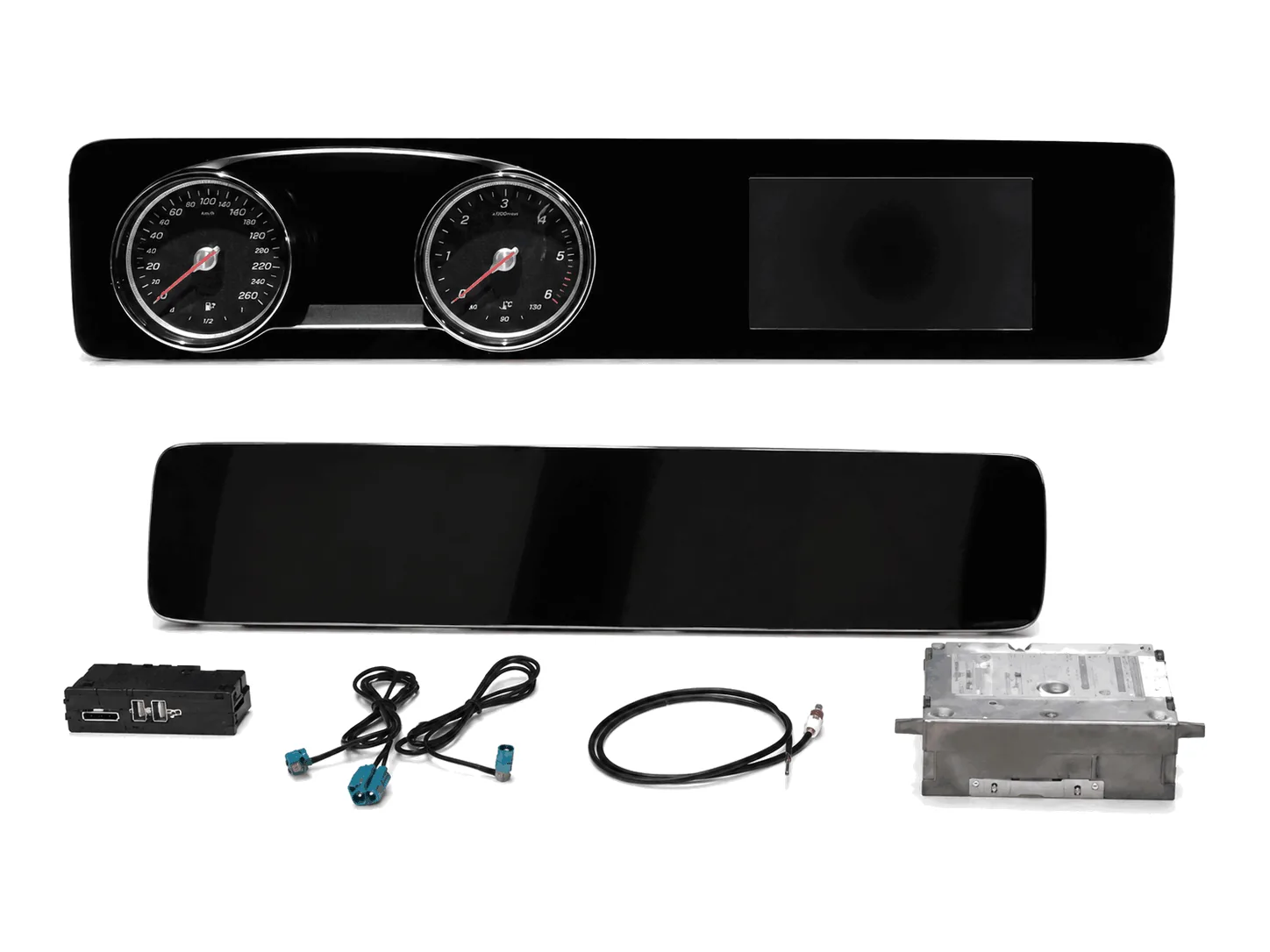

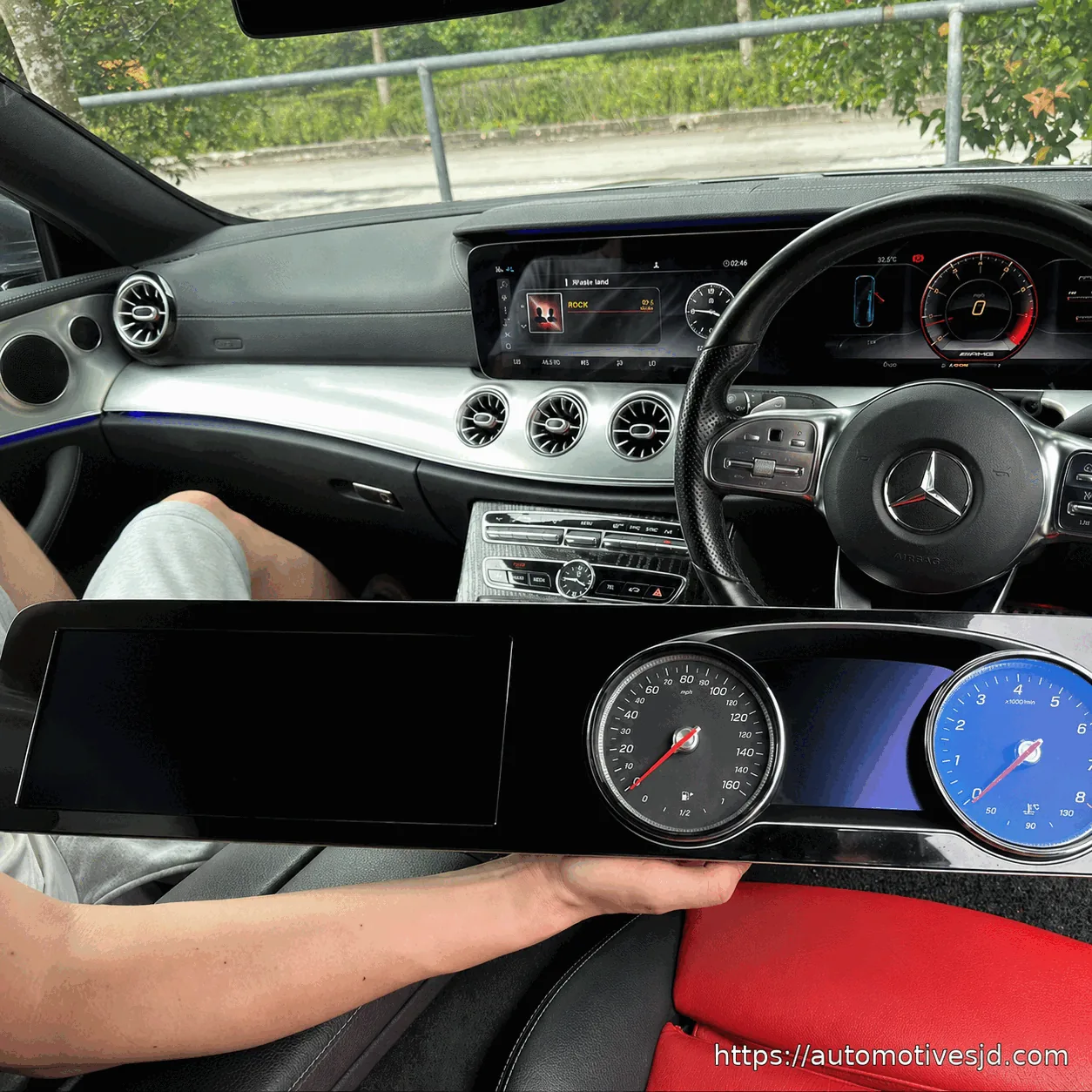

Option 1 – Small Screen to Widescreen Digital Cluster – HU5.5 Upgrade
This configuration is designed for W213 vehicles equipped with the original small infotainment screen
that require an upgrade to the widescreen digital instrument cluster.
Required Components:
- HU5.5 Head Unit
- Widescreen Digital Instrument Cluster / Display Assembly
- USB Hub / USB Box
- Required Wiring Harness
The original small-screen vehicle requires the corresponding HU5.5 head unit,
display assembly, USB box and wiring harness to complete the upgrade.
Programming, coding and component matching are required after installation.

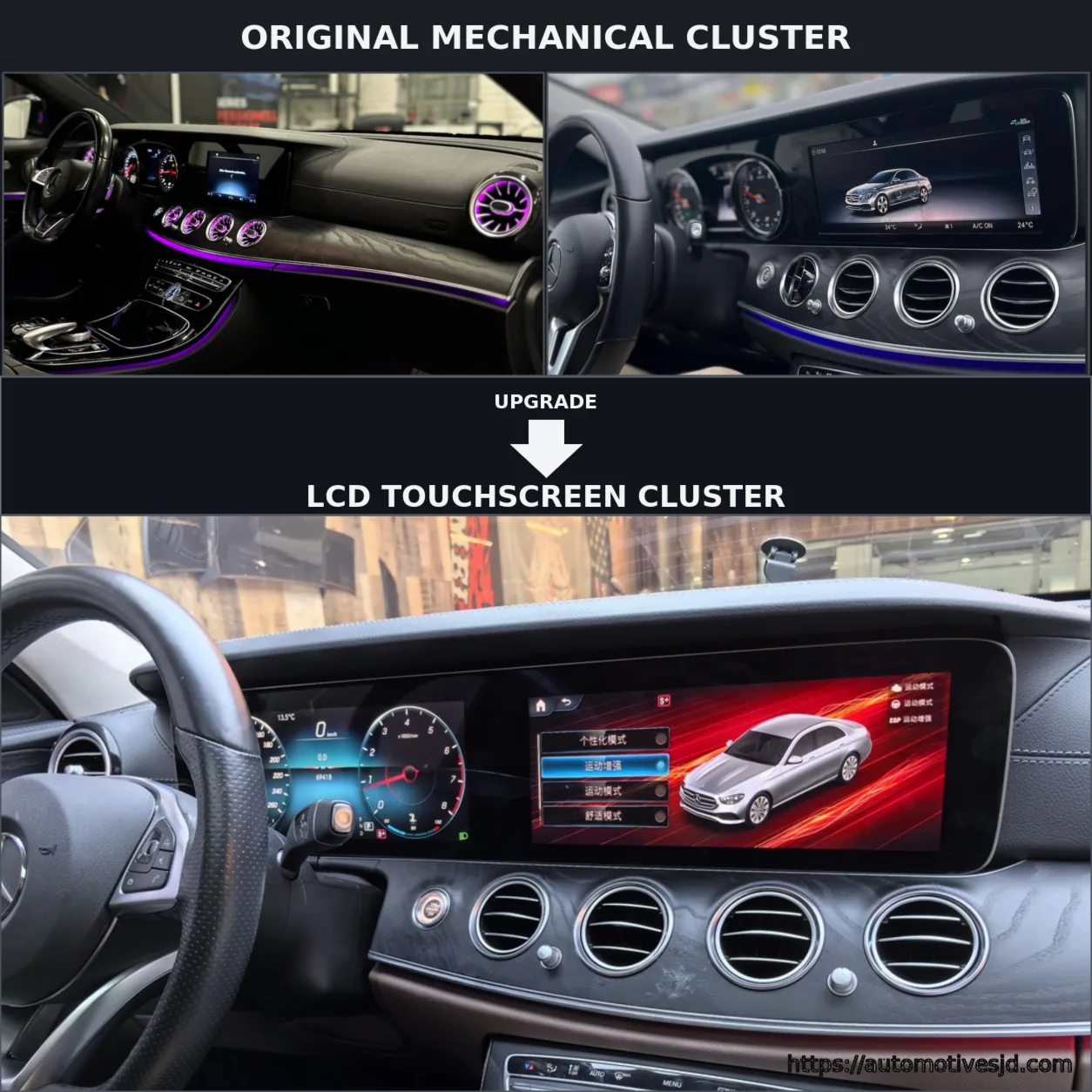

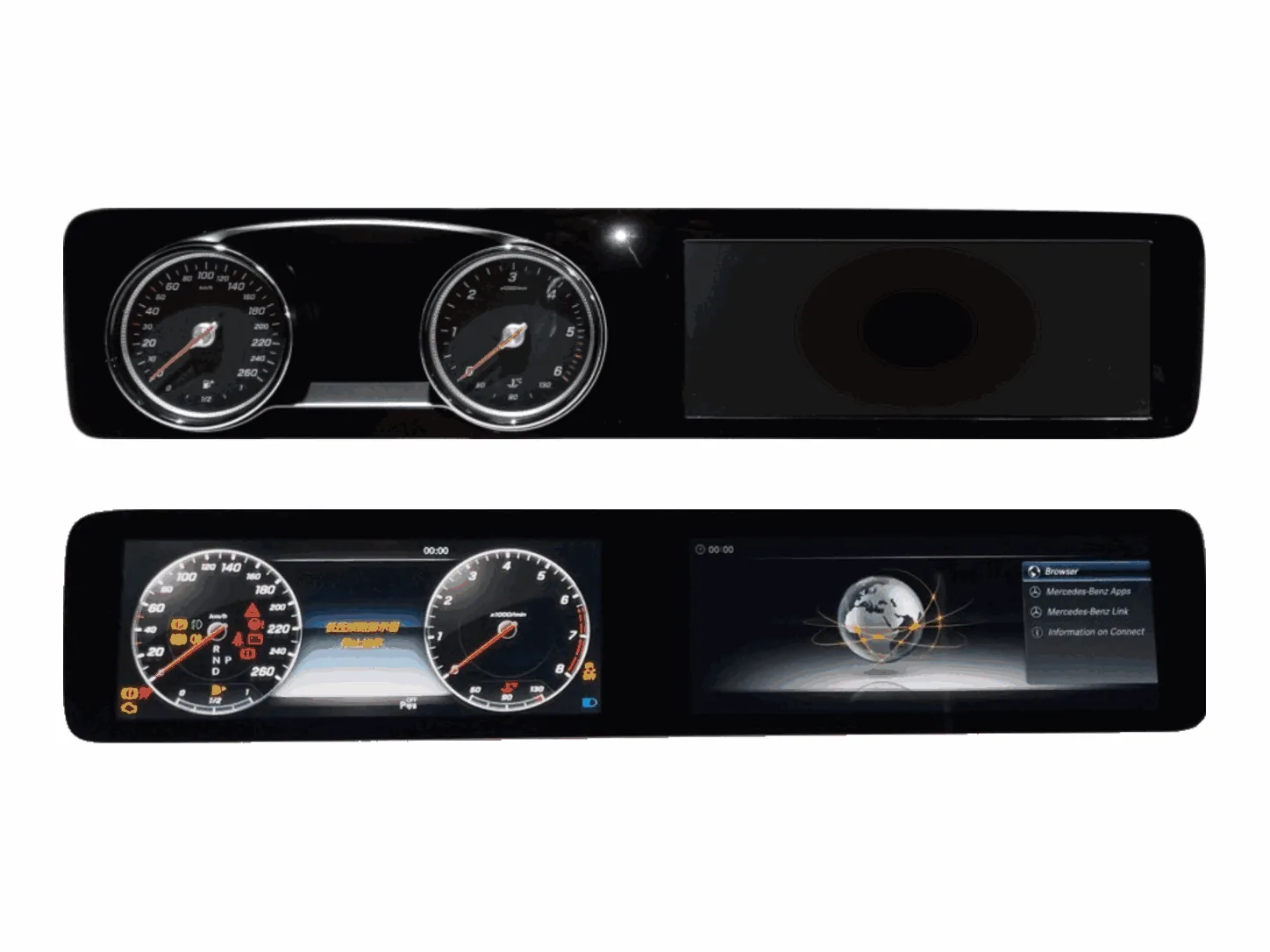

Option 2 – Large Screen to Widescreen Digital Cluster – Display Upgrade
This configuration is designed for compatible W213 vehicles already equipped with
the original large infotainment screen.
Required Components:
- Widescreen Digital Instrument Cluster / Display Assembly
For compatible large-screen vehicles, only the required display assembly needs to be replaced.
The original head unit and multimedia configuration must be confirmed before ordering.

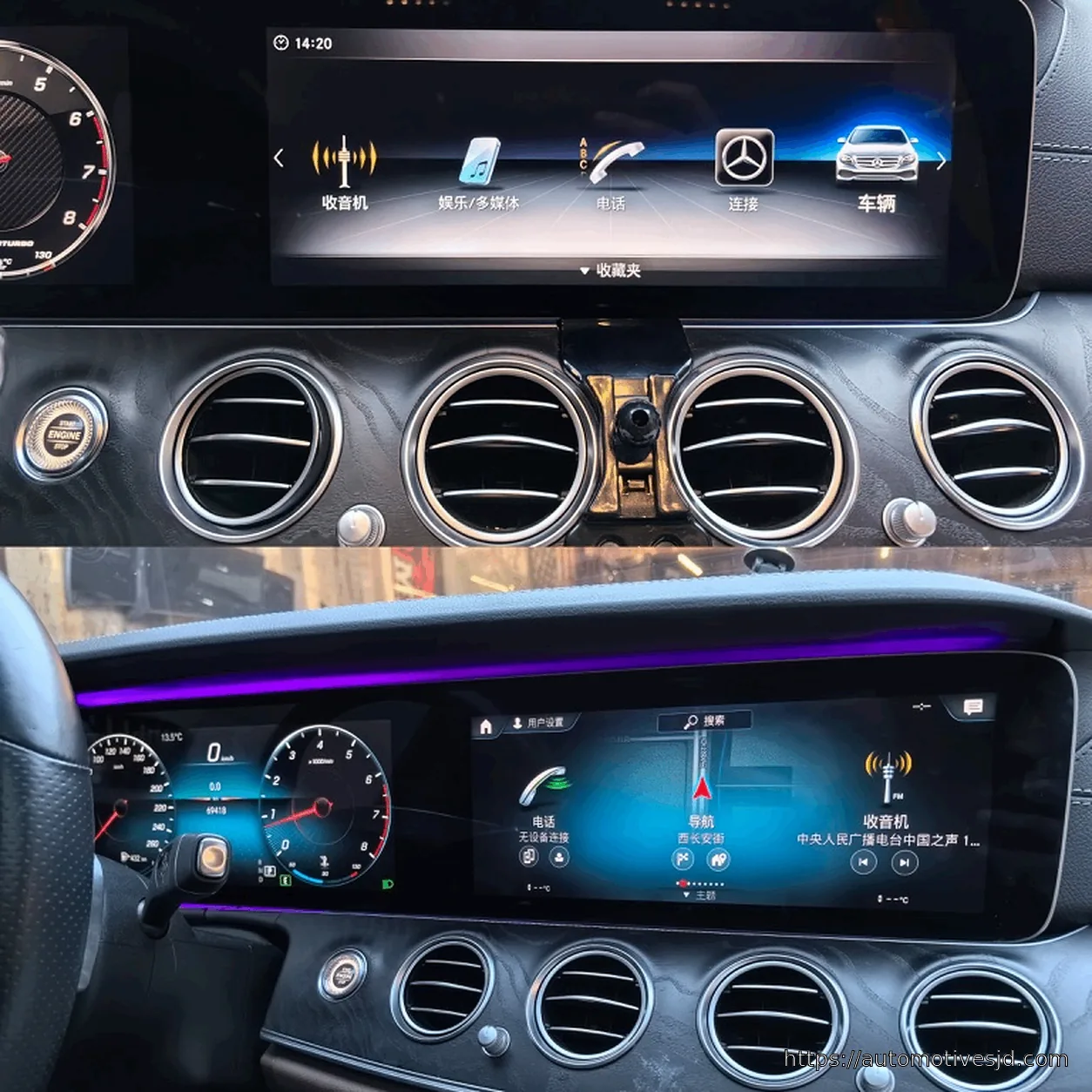

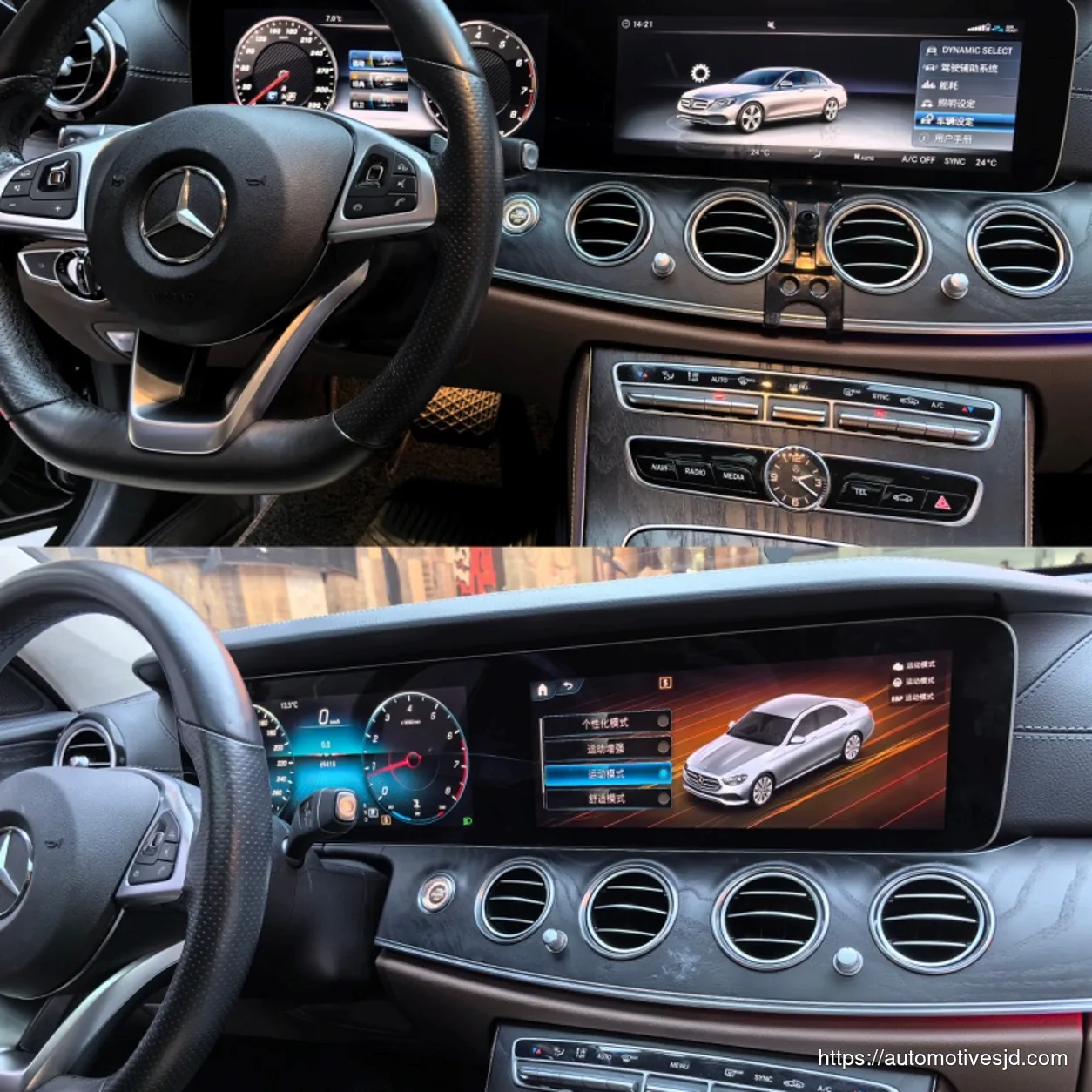

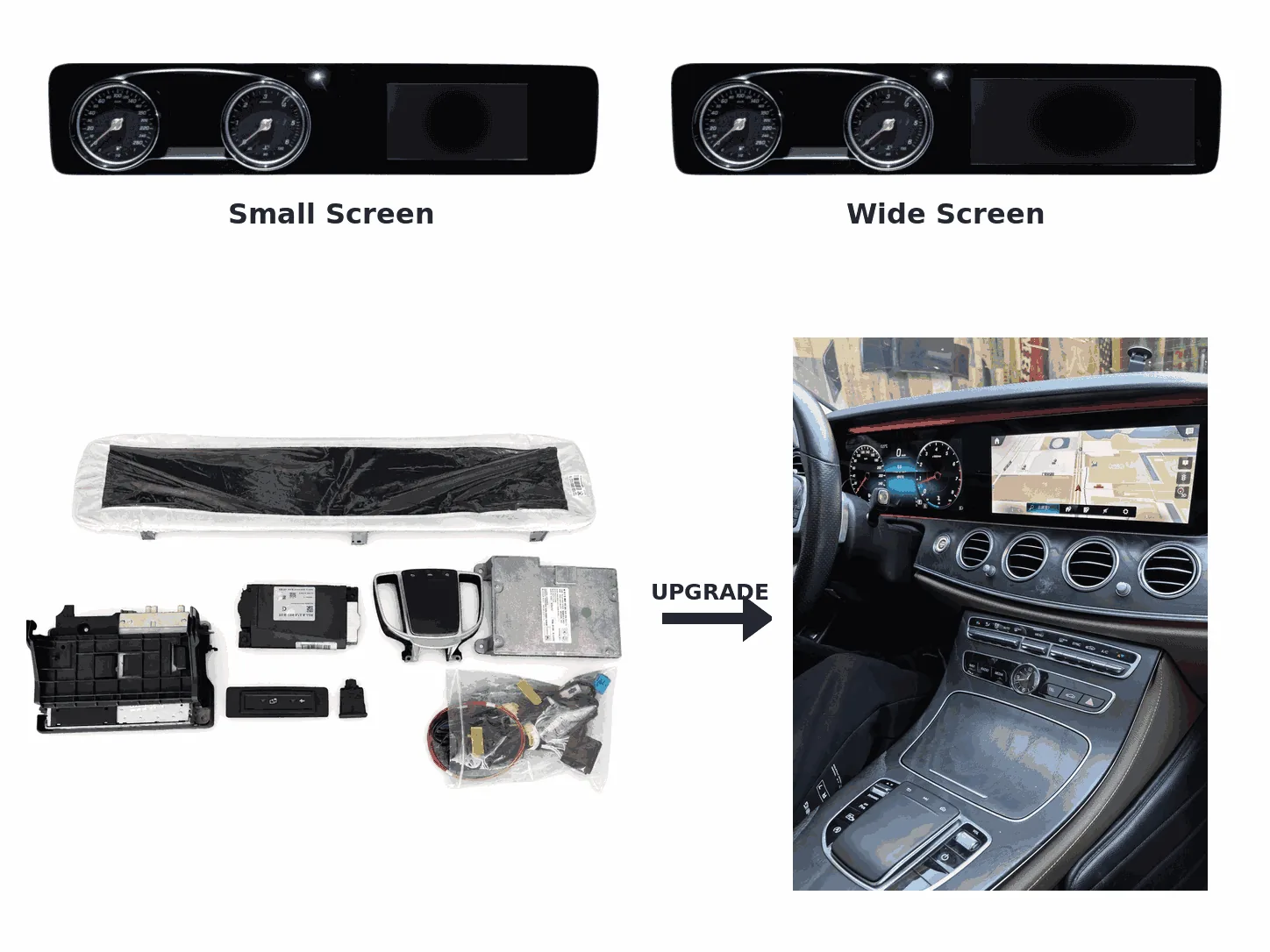

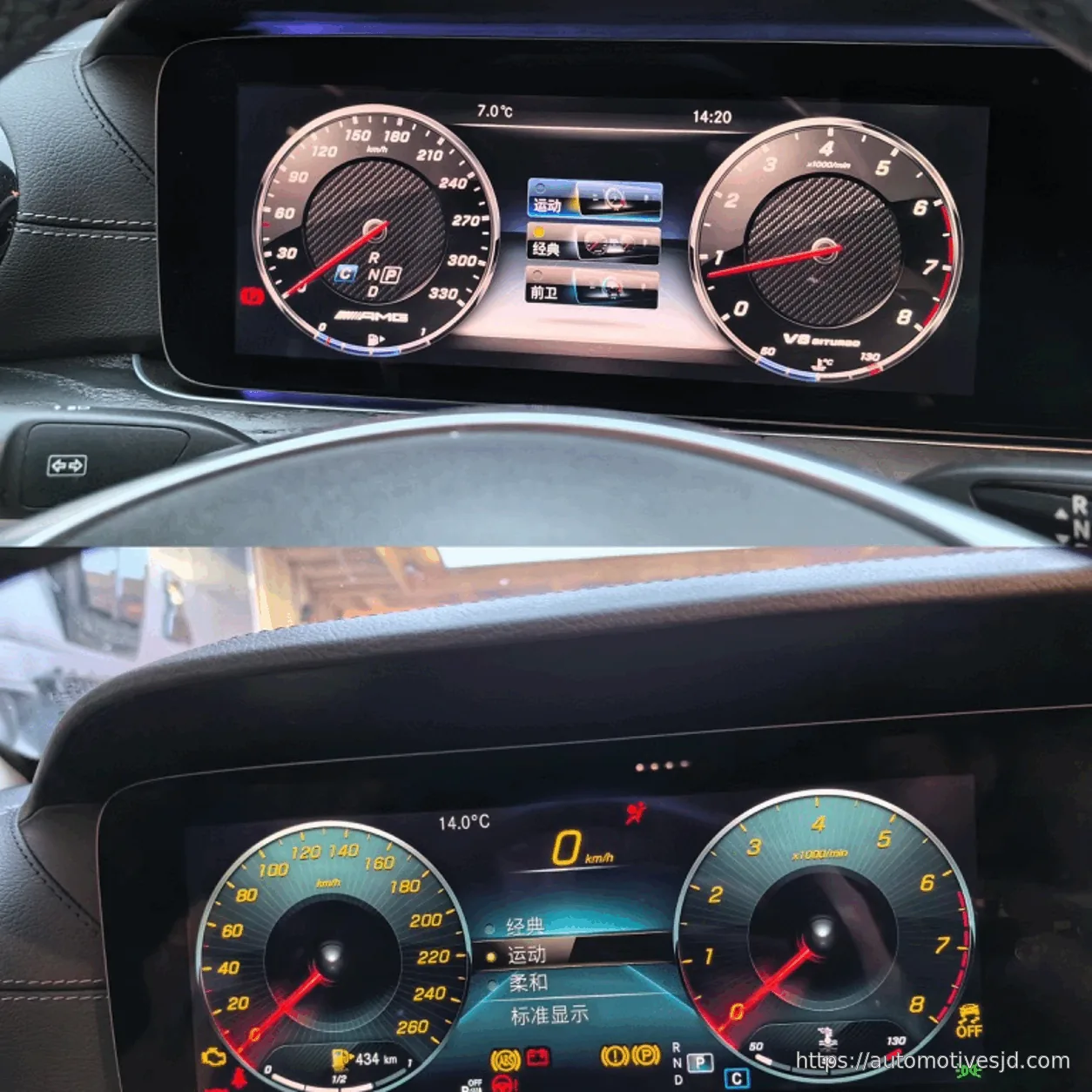

Option 3 – HU6 Touchscreen Full System Upgrade
This configuration is designed for compatible W213 vehicles equipped with either the
original small-screen or large-screen multimedia system that require a complete HU6 touchscreen upgrade.
Required Components:
- HU6 Head Unit
- Touchscreen Display
- Instrument Control Computer
- Ignition Module
- Head Unit Mounting Bracket
- Required Wiring Harness
- Touchpad
- Touchpad Mounting Bracket
- USB Hub / USB Box
This is the most complete upgrade configuration and requires replacement of multiple
multimedia, instrument and control components.
Professional installation, programming, coding and component matching are required.
Component Condition
All main hardware supplied for this W213 digital instrument cluster and multimedia upgrade
consists of pre-owned original vehicle components removed from compatible donor vehicles.
These components are not brand-new.
Normal cosmetic signs of previous installation, removal or use may be present.
The exact appearance and original manufacturer part numbers may vary according to
the required vehicle configuration.
Fitment
- Vehicle Model: Mercedes-Benz E-Class
- Chassis Code: W213
- Model Years: 2016–2023, depending on market and original vehicle configuration
- Original Screen: Small Screen / Large Screen
- Upgrade Systems: HU5.5 / HU6
- Product Type: Digital Instrument Cluster & Multimedia System Upgrade
- Component Condition: Used Original Vehicle Components
- Installation: Professional retrofit installation required
Important Notes
Compatibility cannot be determined by model year alone.
Different W213 vehicles may use different head units, displays, instrument computers,
USB modules, connectors and multimedia configurations.
Before ordering, please provide clear photos of the original instrument cluster,
center infotainment display and center console controls.
VIN or multimedia system information may also be required for compatibility confirmation.
Programming, coding, component matching and vehicle system adaptation are required
for certain upgrade configurations.
All main hardware supplied for this upgrade is pre-owned original vehicle equipment
removed from compatible donor vehicles.
Normal signs of previous installation or use may be present.
